規格
| 輸入電壓 | 100 – 120 V (50 – 60 Hz) |
| 消耗功率 | ＜0.5 W standby 60 W device in operation |

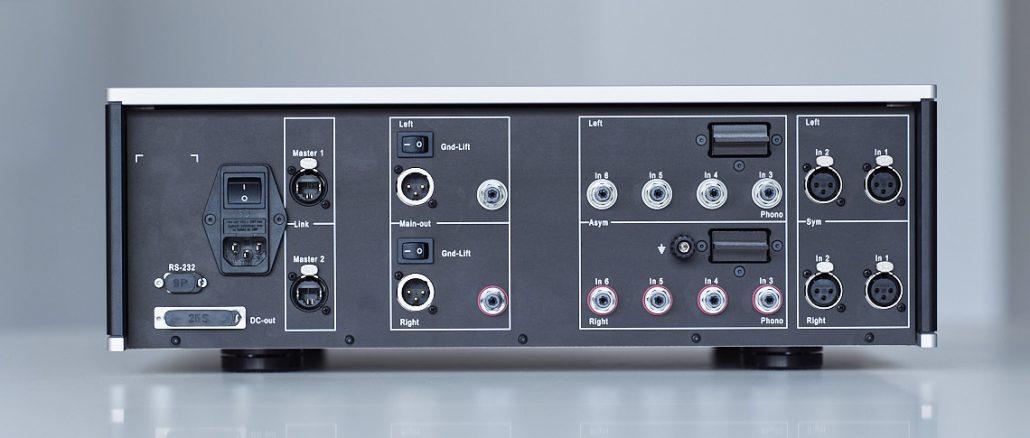

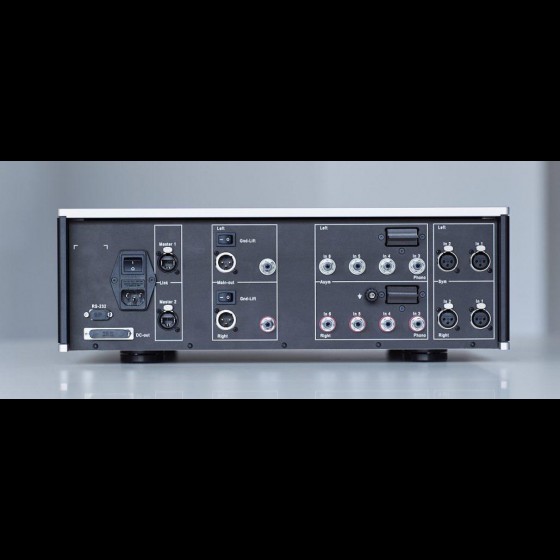

| 輸入端子 | 2 × balanced (XLR) 3 × unbalanced (RCA) 1 × Phono-MC (optional) |
| 輸入阻抗 | 2 kΩ balanced (XLR) 47 kΩ unbalanced(RCA) 10 – 1000 Ω (adjustable) |
| 輸出端子 | 1 × balanced (XLR) 1 × unbalanced (RCA) |
| 頻率響應 (– 3 dB) | 0 – 1 MHz |
| 總諧波失真率 | ＜0.00009% (20 Hz – 20 kHz) |
| 訊噪比 | ＞140 dB |
| 聲道分離度 | ＞110 dB |
| 增益 | + 9.5 dB balanced (XLR) + 3.5 dB unbalanced (RCA) + 54/60 dB Phono-MC unbalanced (optional) plus gain adaption + 3/+ 6/+ 9 dB |
| 音量控制 | 0 to – 79 dB in 1 dB steps |
| 輸出阻抗 | 2 Ω balanced (XLR) 2 Ω unbalanced (RCA) |
| 輸出電壓 | 16 VRMS balanced (XLR) 8 VRMS unbalanced (RCA) |
| 最大輸出電流 | 1 A (limited by protection circuit) |
| 尺寸 | 480 × 167 × 450 mm (W x H x D) |
| 重量 | approx. 30 kg |
| LINK (remote turn-on) | 12 V control signal |
